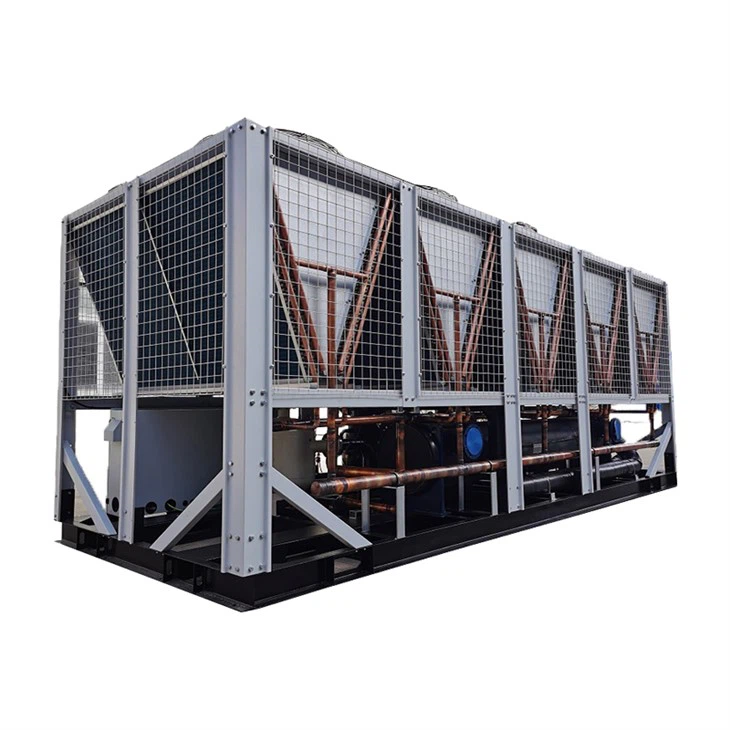

Chiller bil-kamin imkessaħ bl-arja
Serje chiller bil-kamin mkessħa bl-arja LSBF ma jeħtieġux sistema addizzjonali ta 'tkessiħ ta' l-ilma u hija relattivament faċli biex tinstalla u żżomm. Huwa adattat għal postijiet bi spazju limitat jew ilma li jkessaħ insuffiċjenti, iżda l-effiċjenza tat-tkessiħ hija affettwata mit-temperatura ambjentali u l-umdità, għalhekk normalment tintuża f'applikazzjonijiet b'tagħbija baxxa ta 'sħana. Huwa mqabbel ma 'kompressuri bil-kamin, adattati għall-ħtieġa ta' kapaċità ta 'tkessiħ (sa 395 tunnellata).
Kapaċità tat-tkessiħ: 90kW ——1390kW
Refriġerant: R22, R134a, R407c, R404a, R410a (Mhux obbligatorju)
Provvista tal-Enerġija: 3P-50Hz-380V (Personalizzabbli)
Kompressur: kompressur bil-kamin semi-magħluq
Fluss ta 'Ilma Imkessaħ: 15.5——239m³/h (Dħul/ħruġ 12 grad /7 grad)
Firxa tat-Temperatura:5-35 grad
Il-chiller tal-kompressur bil-kamin huwa adattat għal-lukandi, bini ta 'uffiċini, bini ta' uffiċini, bini kummerċjali, ċentri tax-xiri, teatri u okkażjonijiet oħra fejn ir-riżorsi tal-ilma huma stretti; huwa wkoll adattat għall-oqsma tat-tkessiħ industrijali.
Kapaċità tat-tkessiħ: 90kW ——1390kW
Refriġerant: R22, R134a, R407c, R404a, R410a (Mhux obbligatorju)
Provvista tal-Enerġija: 3P-50Hz-380V (Personalizzabbli)
Kompressur: kompressur bil-kamin semi-magħluq
Fluss ta 'Ilma Imkessaħ: 15.5——239m³/h (Dħul/ħruġ 12 grad /7 grad)
Firxa tat-Temperatura:5-35 grad
Il-chiller tal-kompressur bil-kamin huwa adattat għal-lukandi, bini ta 'uffiċini, bini ta' uffiċini, bini kummerċjali, ċentri tax-xiri, teatri u okkażjonijiet oħra fejn ir-riżorsi tal-ilma huma stretti; huwa wkoll adattat għall-oqsma tat-tkessiħ industrijali.
Ibgħat l-inkjesta
Introduzzjoni tal-Prodott Parametru Tekniku
|
Oġġetti |
Unità |
Oġġett Nru. |
Oġġett Nru. |
|||||||||
|
LSBF90 |
LSBF120 |
LSBF155 |
LSBF165 |
LSBF210 |
LSBF225 |
LSBF265 |
LSBF280 |
LSBF305 |
LSBF330 |
|||
|
Kapaċità tat-tkessiħ |
kW |
90 |
120 |
155 |
165 |
210 |
225 |
265 |
280 |
305 |
330 |
|
|
kcal/hr |
77 |
103 |
133 |
142 |
181 |
194 |
228 |
241 |
262 |
284 |
||
|
Provvista tal-Enerġija |
/ |
380 ~ 480V / 3PH / 50 ~ 60Hz |
380 ~ 480V / 3PH / 50 ~ 60Hz |
|||||||||
|
Qawwa tad-Dħul |
kW |
28.4 |
36.4 |
48 |
54.8 |
64.8 |
70 |
81.9 |
85.4 |
91.5 |
104.4 |
|
|
Kurrent tad-Dħul |
A |
49.7 |
63.7 |
84.0 |
95.9 |
113.4 |
122.5 |
143.3 |
149.5 |
160.1 |
182.7 |
|
|
Qawwa tad-Dħul tal-Kumpressur |
kW |
25.4 |
33.4 |
42 |
48.8 |
56 |
61 |
68.7 |
72.2 |
79.5 |
86.8 |
|
|
Kontrollur |
/ |
PLC |
PLC |
|||||||||
|
Kompressur |
Tip |
/ |
Semi Ermetiku Invita Kumpressur |
Semi Ermetiku Invita Kumpressur |
||||||||
|
Tip Bidu |
/ |
Y-△ Trijangolu Bidu |
Y-△ Trijangolu Bidu |
|||||||||
|
Evaporatur |
Tip |
/ |
Qoxra u Tip Nixxef tat-Tube |
Qoxra u Tip Nixxef tat-Tube |
||||||||
|
Temperatura tal-Ilma |
grad |
12 grad In / 7 grad Out |
12 grad In / 7 grad Out |
|||||||||
|
Fluss tal-Ilma |
m³/h |
15.5 |
20.6 |
26.7 |
28.4 |
36.1 |
38.7 |
45.6 |
48.2 |
52.5 |
56.7 |
|
|
Pressjoni tal-Ilma |
kPa |
40~80 |
40~80 |
|||||||||
|
Fannijiet Assjali |
Fluss tal-Arja |
m3/h |
40000 |
58000 |
80000 |
80000 |
100000 |
111000 |
132000 |
141000 |
148000 |
160000 |
|
Qawwa |
kW |
3 |
3 |
6 |
6 |
8.8 |
9 |
13.2 |
13.2 |
12 |
17.6 |
|
|
Dimensjoni |
Tul |
mm |
2110 |
2110 |
2110 |
2110 |
2110 |
3160 |
3160 |
3160 |
4210 |
4210 |
|
Wisa' |
mm |
1060 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
|
|
Għoli |
mm |
2280 |
2280 |
2280 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
|
|
Refriġerant |
Tip |
/ |
R22/R407c/R134a |
R22/R407c/R134a |
||||||||
|
Throttling |
/ |
Valv ta 'Espansjoni Termali |
Valv ta 'Espansjoni Termali |
|||||||||
|
Port tal-Pajp tal-Ilma |
Kondensatur |
a/b |
2-DN50 |
2-DN65 |
2-DN80 |
2-DN80 |
2-DN80 |
2-DN100 |
2-DN100 |
2-DN100 |
2-DN125 |
2-DN125 |
|
Piż Nett |
kg |
900 |
1550 |
1800 |
2150 |
2250 |
2400 |
2700 |
3000 |
3200 |
3350 |
|
|
Oġġetti |
Unità |
Oġġett Nru. |
Nru tal-oġġett (id-D tfisser b'kompressur doppju) |
|||||||||
|
LSBF360 |
LSBF420 |
LSBF450 |
LSBF490 |
LSBF530 |
LSBF530D |
LSBF550 |
LSBF560D |
LSBF610D |
LSBF635 |
|||
|
Kapaċità tat-tkessiħ |
kW |
360 |
420 |
450 |
490 |
530 |
530 |
550 |
560 |
610 |
635 |
|
|
kcal/hr |
310 |
361 |
387 |
421.4 |
455.8 |
455.8 |
473 |
481.6 |
524.6 |
546.1 |
||
|
Provvista tal-Enerġija |
/ |
380 ~ 480V / 3PH / 50 ~ 60Hz |
380 ~ 480V / 3PH / 50 ~ 60Hz |
|||||||||
|
Qawwa tad-Dħul |
kW |
114.1 |
129.7 |
135.9 |
150.2 |
160 |
163.8 |
164.4 |
170.8 |
183 |
186.1 |
|
|
Kurrent tad-Dħul |
A |
199.7 |
227.0 |
237.8 |
262.9 |
280.0 |
286.7 |
287.7 |
298.9 |
320.3 |
325.7 |
|
|
Qawwa tad-Dħul tal-Kumpressur |
kW |
96.5 |
112.1 |
118.3 |
128.2 |
138 |
137.4 |
142.4 |
144.4 |
159 |
164.1 |
|
|
Kontrollur |
/ |
PLC |
PLC |
|||||||||
|
Kompressur |
Tip |
/ |
Semi Ermetiku Invita Kumpressur |
Semi Ermetiku Invita Kumpressur |
||||||||
|
Tip Bidu |
/ |
Y-△ Trijangolu Bidu |
Y-△ Trijangolu Bidu |
|||||||||
|
Evaporatur |
Tip |
/ |
Qoxra u Tip Nixxef tat-Tube |
Qoxra u Tip Nixxef tat-Tube |
||||||||
|
Temperatura tal-Ilma |
grad |
12 grad In / 7 grad Out |
12 grad In / 7 grad Out |
|||||||||
|
Fluss tal-Ilma |
m³/h |
61.9 |
72.2 |
77.4 |
84.3 |
91.1 |
91.1 |
94.6 |
96.3 |
104.9 |
109.2 |
|
|
Pressjoni tal-Ilma |
kPa |
40~80 |
40~80 |
|||||||||
|
Fannijiet Assjali |
Fluss tal-Arja |
m³/h |
160000 |
188000 |
200000 |
220000 |
235000 |
264000 |
250000 |
264000 |
296000 |
280000 |
|
Qawwa |
kW |
17.6 |
17.6 |
17.6 |
22 |
22 |
26.4 |
22 |
26.4 |
24 |
22 |
|
|
Dimensjoni |
Tul |
mm |
4210 |
4210 |
4210 |
5260 |
5260 |
6320 |
5260 |
6320 |
8420 |
5760 |
|
Wisa' |
mm |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2200 |
|
|
Għoli |
mm |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
|
|
Refriġerant |
Tip |
/ |
R22/R407c/R134a |
R22/R407c/R134a |
||||||||
|
Throttling |
/ |
Valv ta 'Espansjoni Termali |
Valv ta 'Espansjoni Termali |
|||||||||
|
Port tal-Pajp tal-Ilma |
Kondensatur |
a/b |
2-DN125 |
2-DN125 |
2-DN125 |
2-DN150 |
2-DN150 |
4-DN100 |
2-DN150 |
4-DN100 |
4-DN125 |
2-DN150 |
|
Piż Nett |
kg |
3950 |
4250 |
4550 |
4550 |
4750 |
5400 |
4950 |
6000 |
6400 |
5200 |
|
|
Oġġetti |
Unità |
Nru tal-oġġett (id-D tfisser b'kompressur doppju) |
Nru tal-oġġett (id-D tfisser b'kompressur doppju) |
||||||||
|
LSBF660D |
LSBF720D |
LSBF840D |
LSBF900D |
LSBF980D |
LSBF1060D |
LSBF1100D |
LSBF1270D |
LSBF1390D |
|||
|
Kapaċità tat-tkessiħ |
kW |
660 |
720 |
840 |
900 |
980 |
1060 |
1100 |
1270 |
1390 |
|
|
kcal/hr |
567.6 |
619.2 |
722.4 |
774 |
842.8 |
911.6 |
946 |
1092.2 |
1195.4 |
||
|
Provvista tal-Enerġija |
/ |
380 ~ 480V / 3PH / 50 ~ 60Hz |
380 ~ 480V / 3PH / 50 ~ 60Hz |
||||||||
|
Qawwa tad-Dħul |
kW |
208.8 |
228.2 |
259.4 |
271.8 |
300.4 |
320 |
328.4 |
372.2 |
408 |
|
|
Kurrent tad-Dħul |
A |
365.4 |
399.4 |
454.0 |
475.7 |
525.7 |
560.0 |
574.7 |
651.4 |
714.0 |
|
|
Qawwa tad-Dħul tal-Kumpressur |
kW |
173.6 |
193 |
224.2 |
236.6 |
256.4 |
276 |
284.4 |
328.2 |
364 |
|
|
Kontrollur |
/ |
PLC |
PLC |
||||||||
|
Kompressur |
Tip |
/ |
Semi Ermetiku Invita Kumpressur |
Semi Ermetiku Invita Kumpressur |
|||||||
|
Tip Bidu |
/ |
Y-△ Trijangolu Bidu |
Y-△ Trijangolu Bidu |
||||||||
|
Evaporatur |
Tip |
/ |
Qoxra u Tip Nixxef tat-Tube |
Qoxra u Tip Nixxef tat-Tube |
|||||||
|
Temperatura tal-Ilma |
grad |
12 grad In / 7 grad Out |
12 grad In / 7 grad Out |
||||||||
|
Fluss tal-Ilma |
m³/h |
113.5 |
123.8 |
144.5 |
154.8 |
168.5 |
182.3 |
189.2 |
218.4 |
239.0 |
|
|
Pressjoni tal-Ilma |
kPa |
40~80 |
40~80 |
||||||||
|
Fannijiet Assjali |
Fluss tal-Arja |
m3/h |
320000 |
320000 |
376000 |
400000 |
440000 |
470000 |
500000 |
560000 |
560000 |
|
Qawwa |
kW |
35.2 |
35.2 |
35.2 |
35.2 |
44 |
44 |
44 |
44 |
44 |
|
|
Dimensjoni |
Tul |
mm |
8420 |
8420 |
8420 |
8420 |
10520 |
10520 |
10520 |
11520 |
11520 |
|
Wisa' |
mm |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2200 |
2200 |
|
|
Għoli |
mm |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
|
|
Refriġerant |
Tip |
/ |
R22/R407c/R134a |
R22/R407c/R134a |
|||||||
|
Throttling |
/ |
Valv ta 'Espansjoni Termali |
Valv ta 'Espansjoni Termali |
||||||||
|
Port tal-Pajp tal-Ilma |
Kondensatur |
a/b |
4-DN125 |
4-DN125 |
4-DN125 |
4-DN125 |
4-DN150 |
4-DN150 |
4-DN150 |
4-DN150 |
4-DN150 |
|
Piż Nett |
kg |
6700 |
7900 |
8500 |
9100 |
9300 |
9500 |
9900 |
10400 |
11000 |
|
